HDPE Pn16 Sdr11 Water Pipe Fitting Butt Fusion Welding Reducer

Brand Name : CR

Model Number : 90*50mm

Certification : ISO,CE.SGS,WRAS

Place of Origin : China

MOQ : 50pcs

Price : can be negotiated / Pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000000 Piece/Pieces per month

Delivery Time : 3-10 days

Packaging Details : carton

Material : High-density polyethylene

Packing : 60pcs/carton

Service life : 50 years

Application : Water supply.Irrigation

Connection method : Buttfusion welding

Size Rnage : 63mm-800mm

Contact Now

HDPE Pn16 Sdr11 Water Pipe Fitting Butt Fusion Welding Reducer

Specifications Cdn1x0dn2	L mm	A mm	B mm
63x25	139	63	55
63*32	147	63	55
63*40	141	63	55
63x50	150	63	55
75x32	149	70	55
75x40	150	76	55
75x50	143	70	55
75x63	150	70	63
90x32	163	79	55
90x40	162	79	55
90*50	161	79	55
90x63	168	79	63
90x75	169	79	70
110x40	169	82	55
110*50	166	82	55
110*63	173	82	63
110*75	181	82	70
110x90	177	82	79
125x63	189	87	63
125*75	195	105	75
125x90	183	87	79
125x110	185	87	82
140x90	224	92	79
140*110	220	92	82
160x32	202	98	70
160x63	195	98	63
160x75	204	98	70
160*90	212	98	79
160x110	211	98	82
160x125	216	98	87
180*90	231	110	79
180*110	219	110	82
180x125	233	105	87
180x160	229	105	87
200*63	210	112	63
200*90	220	108	79
200*110	228	112	82
200x125	220	112	90
200x160	226	112	85
200x180	245	112	105
225x90	226	105	79
225*110	245	105	82
225x160	249	105	90
225*180	249	105	90
225*200	246	105	90
250x90	224	117	79
250x110	221	108	82
250x125	234	109	87
250x160	244	110	98
250x180	237	110	105
250*200	250	110	103
250x225	231	105	90
280x160	257	107	85
280x225	247	110	85
280*250	247	110	90
315*90	240	115	79
315x110	241	115	82
315x160	254	115	98
315x180	253	115	100
315*200	253	115	92
315*225	245	115	90
315*250	246	115	90
355x200	270	100	100
355x250	270	100	100
355x280	260	100	100
355x315	240	100	100
400x200	260	100	100
400x250	250	100	100
400*315	250	100	100
400*355	250	100	100
450*200	260	100	100
450x250	260	100	100
450«315	250	100	100
450x355	250	100	100
450x400	240	100	100
500^400	250	100	100
500x450	250	100	100
560«500	260	100	100
630x500	260	100	100
710x630	250	100	100
800x710	250	100	100

Technical Specification Of Butt Fusion Welding Reducer

Description of Butt Fusion Welding Reducer

The production method of PE Buttfusin Reducer is one-time injection molding using an injection molding machine. The main raw material is high-density polyethylene (HDPE), and the connection methods are butt joint.Need Buttfusion machine connect it.

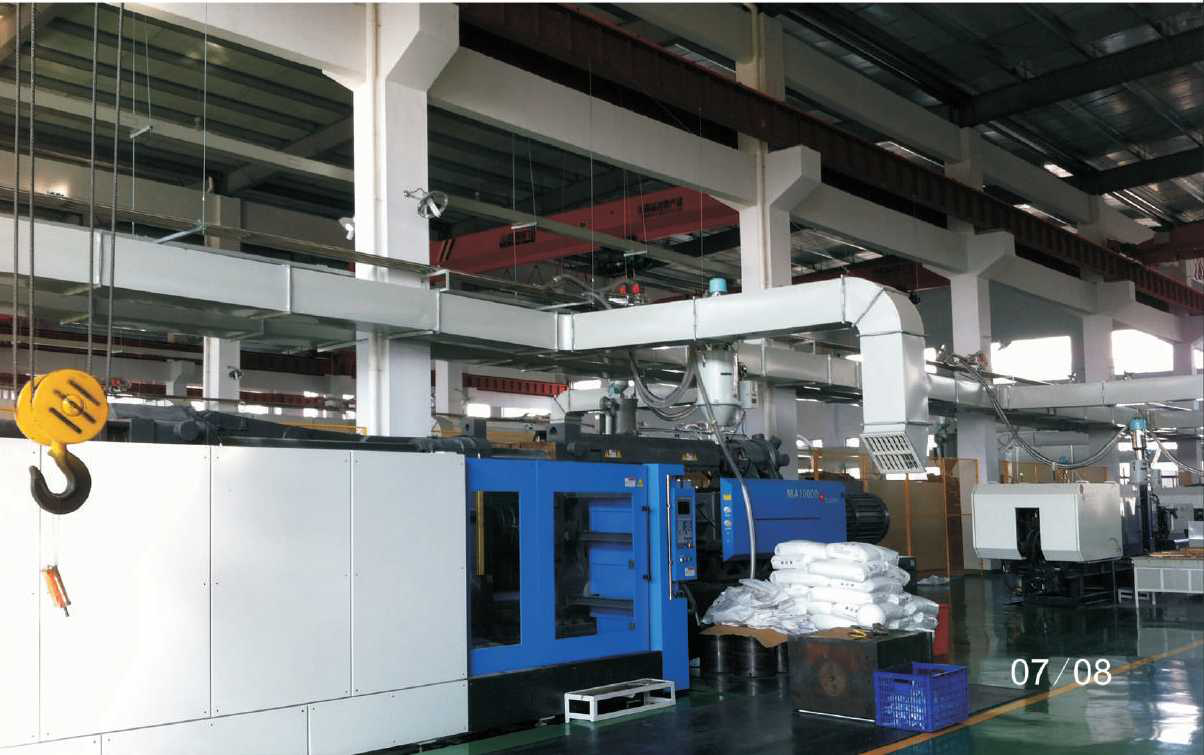

Production workshop

HDPE Pn16 Sdr11 Water Pipe Fitting Butt Fusion Welding Reducer

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
